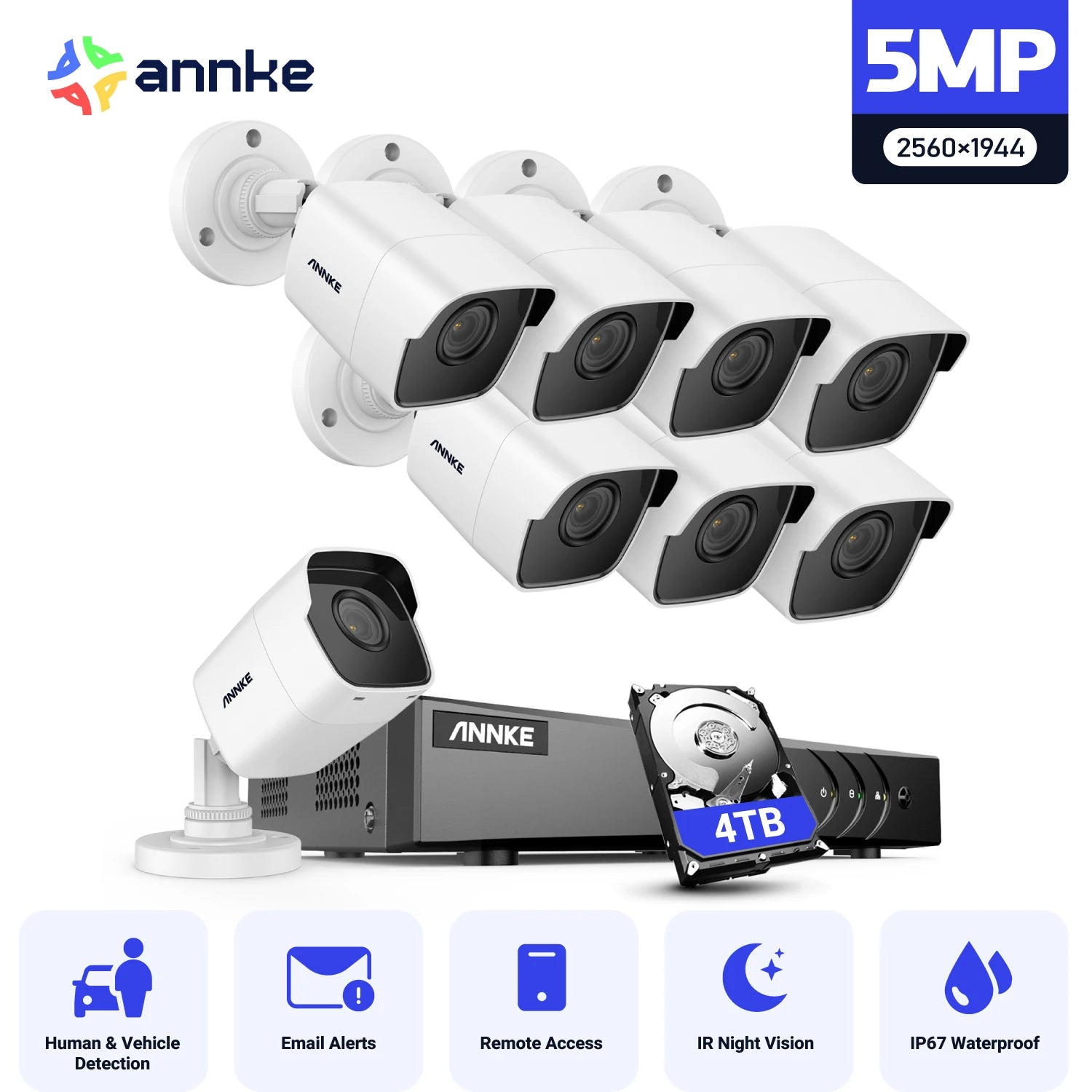

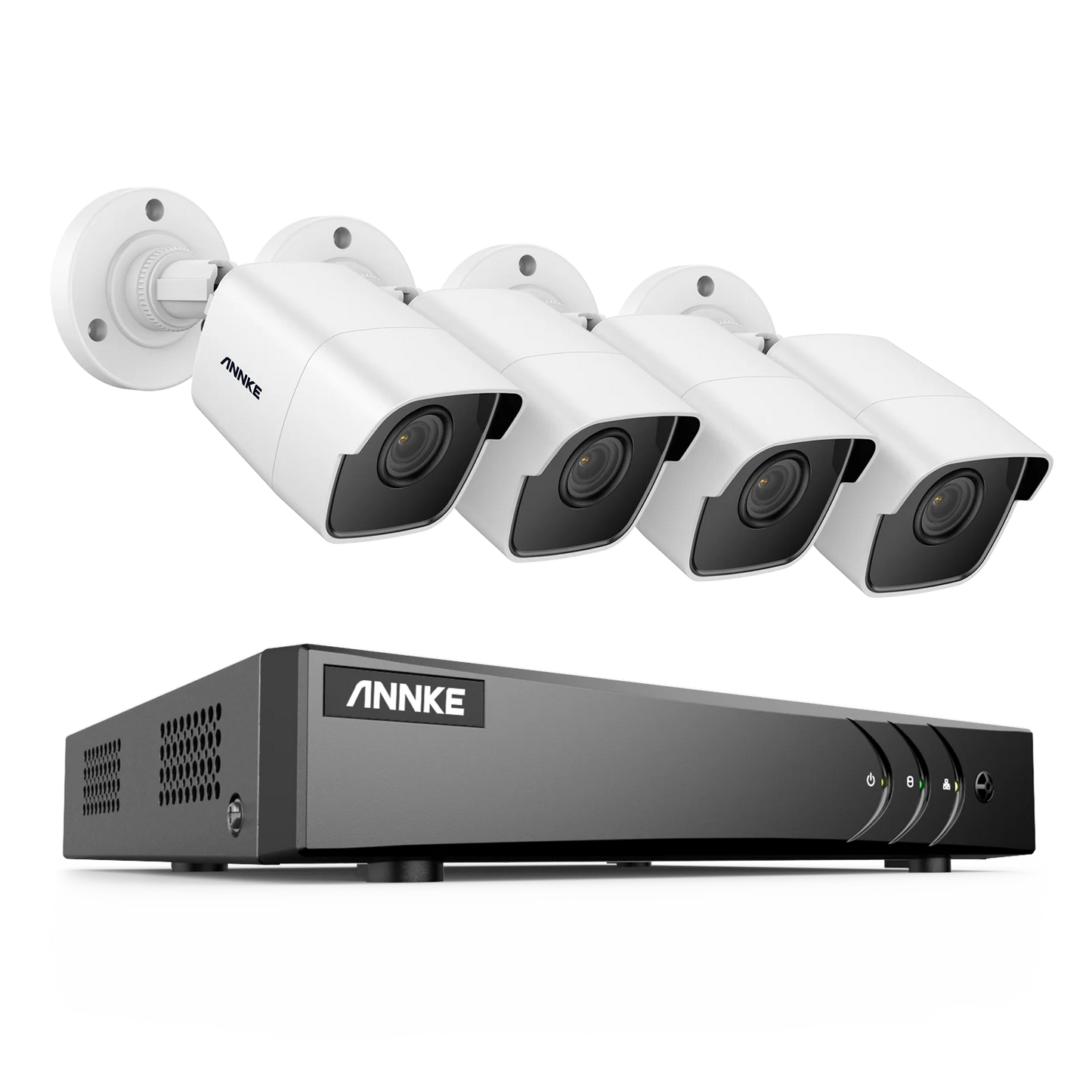

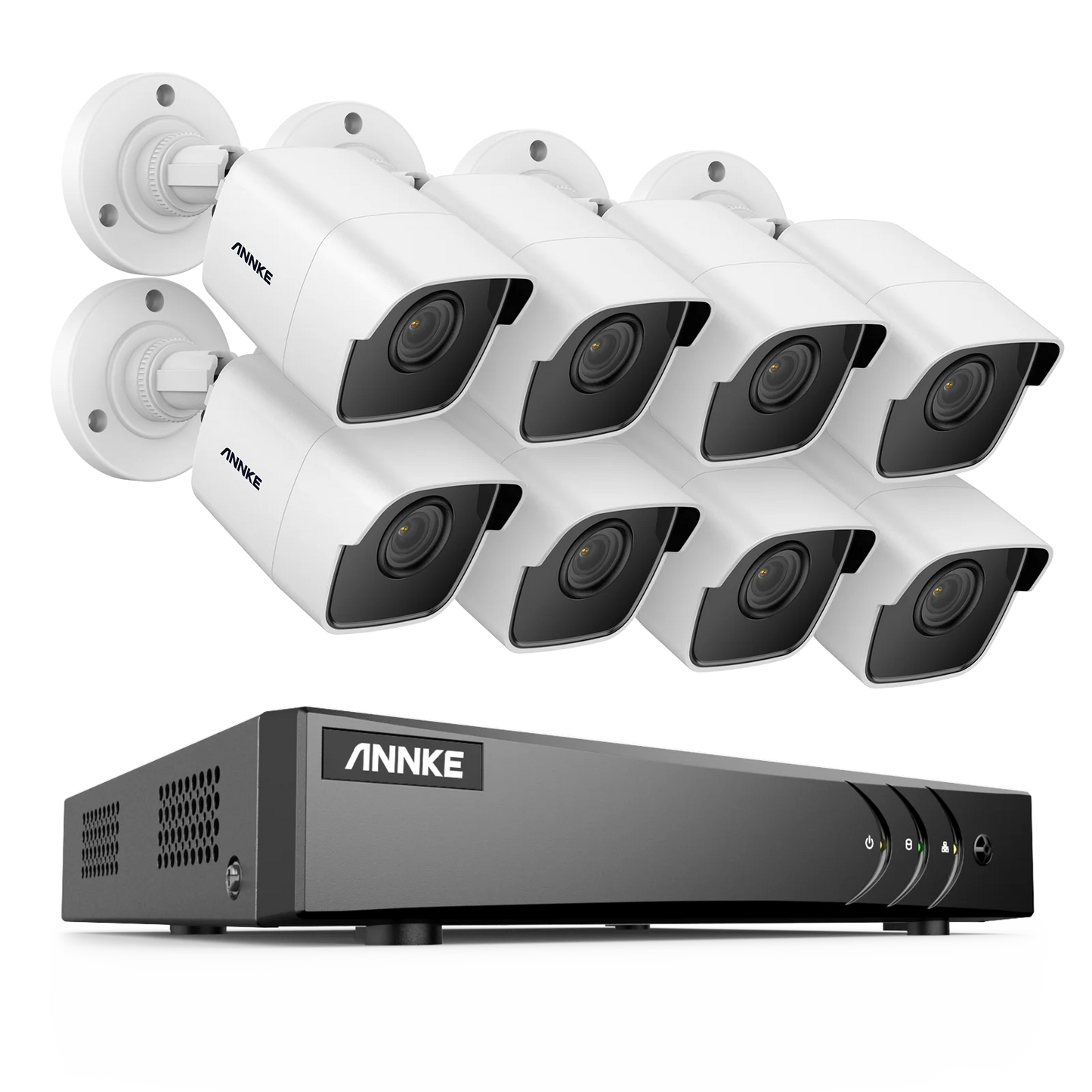

ANNKE 5MP H265 Lite 8 Channel DVR CCTV Security Kit
ANNKE 5MP H265 Lite 8 Channel DVR CCTV Security Kit
Couldn't load pickup availability
Experience crystal 5MP security with smart, efficient recording in an all-in-one 8-channel DVR CCTV kit.
- Your 5MP Ultra HD resolution paired with versatile codecs delivers sharp, detailed footage while maximizing storage efficiency for your long-term surveillance.
- Your IP67 weatherproof cameras with EXIR LEDs resist the elements and provide clear night vision up to 100 feet for your dependable 24/7 monitoring.

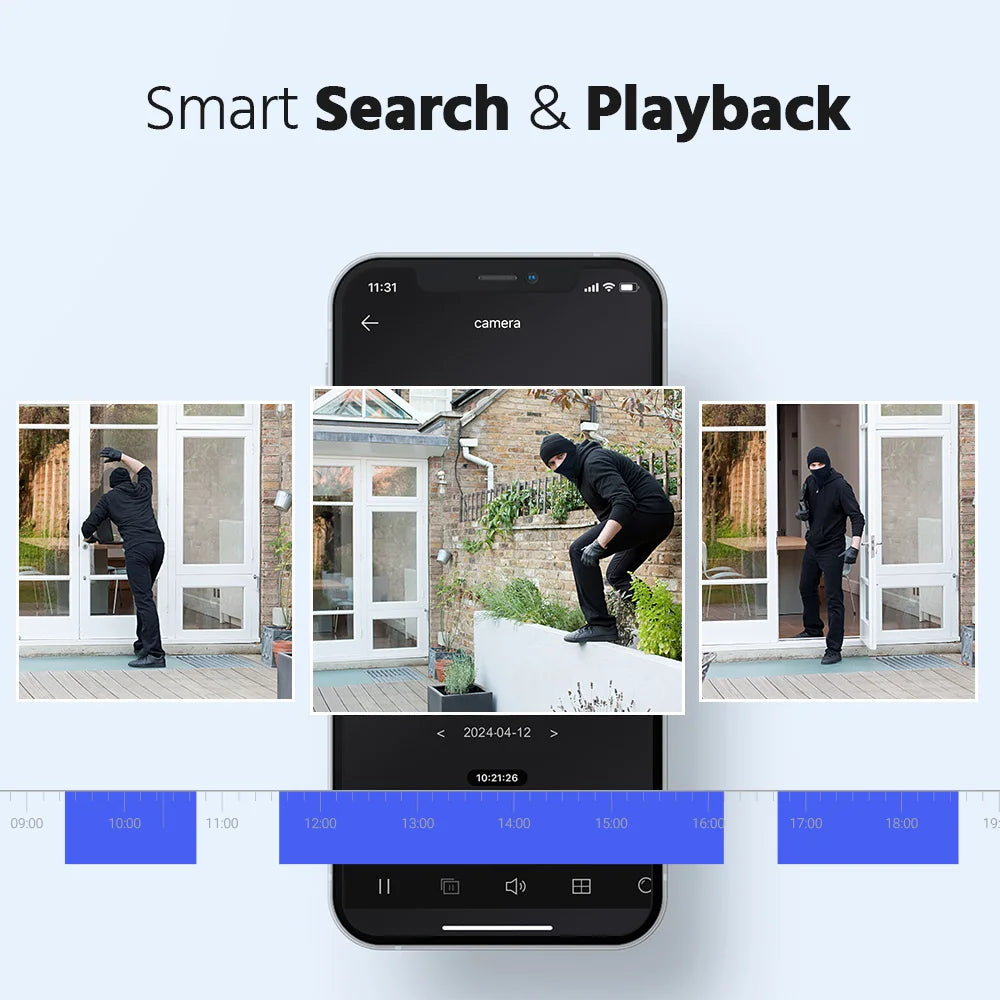

- You stay connected with remote access on mobile via the ANNKE Vision app, plus email alerts with snapshots and fast smart search for quick playback.
- Enjoy easy setup and flexible storage for you: HDMI/VGA output up to 1080p, USB 3.0 backup, and optional HDD support, with a complete kit of cables, mouse, and mounting hardware.
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
2-ch |
|
Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|

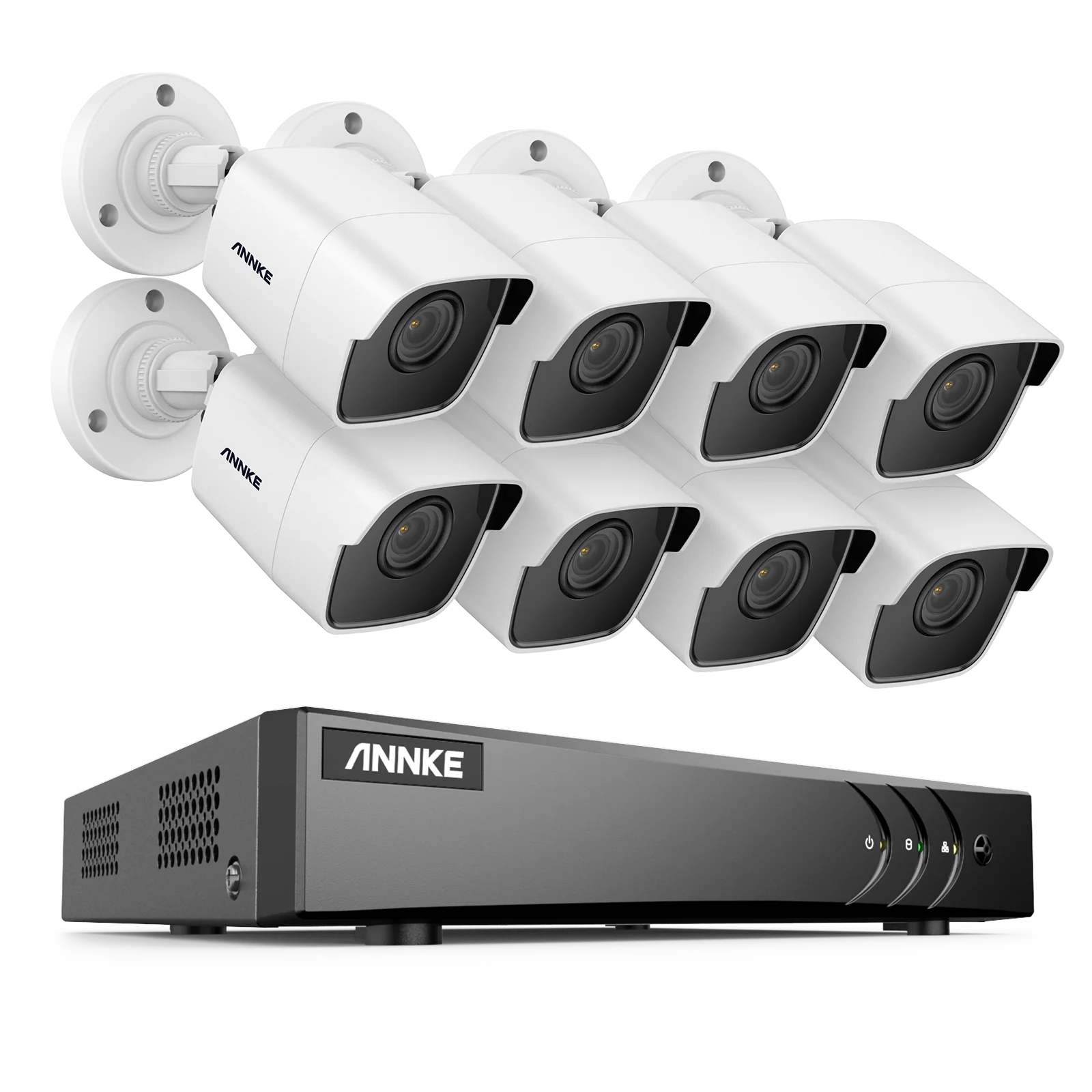

5MP CMOS Camera | ||
Image sensor |
5MP CMOS Image sensor |
|
Camera |
Video Resolution |
2560 (H) × 1944 (V) |
Signal System |
PAL/NTSC |
|
Frame Rate |
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
85.5° |
|
Number of Infra-Red LEDs |
2 |
|
Night Vision Distance |
Up to 100ft/30m |
|
DNR |
2D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
IR Cut Filter |
Yes |
|
Video Output |
HD BNC×1 |
|
General |
Housing |
Plastic |
Color |
White |
|
Operating Power |
DC12V |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
2.28” x 2.40” x 6.42” / 58 x 61 x 163mm |
|
Weight |
0.4lbs / Approx. 180g |
|

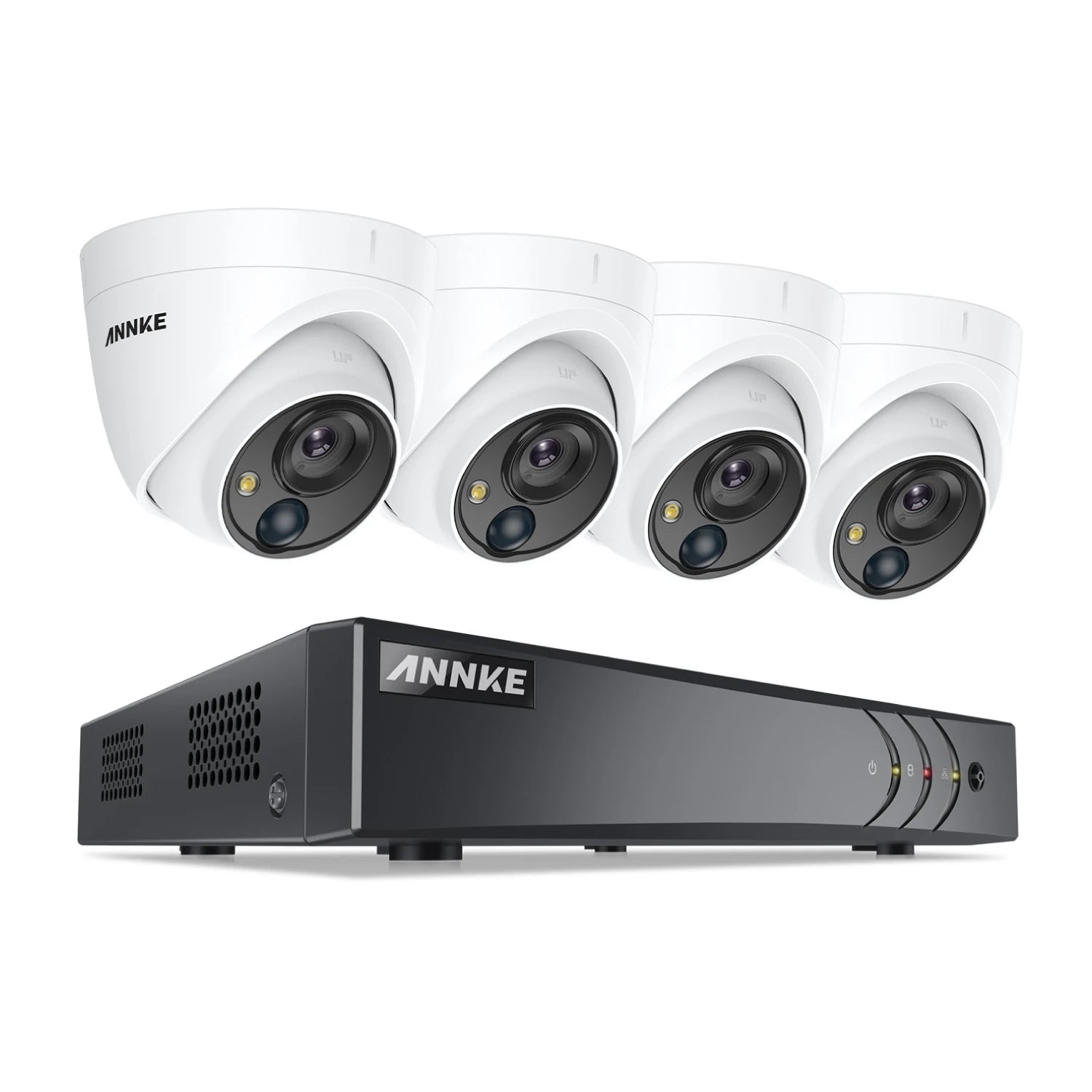

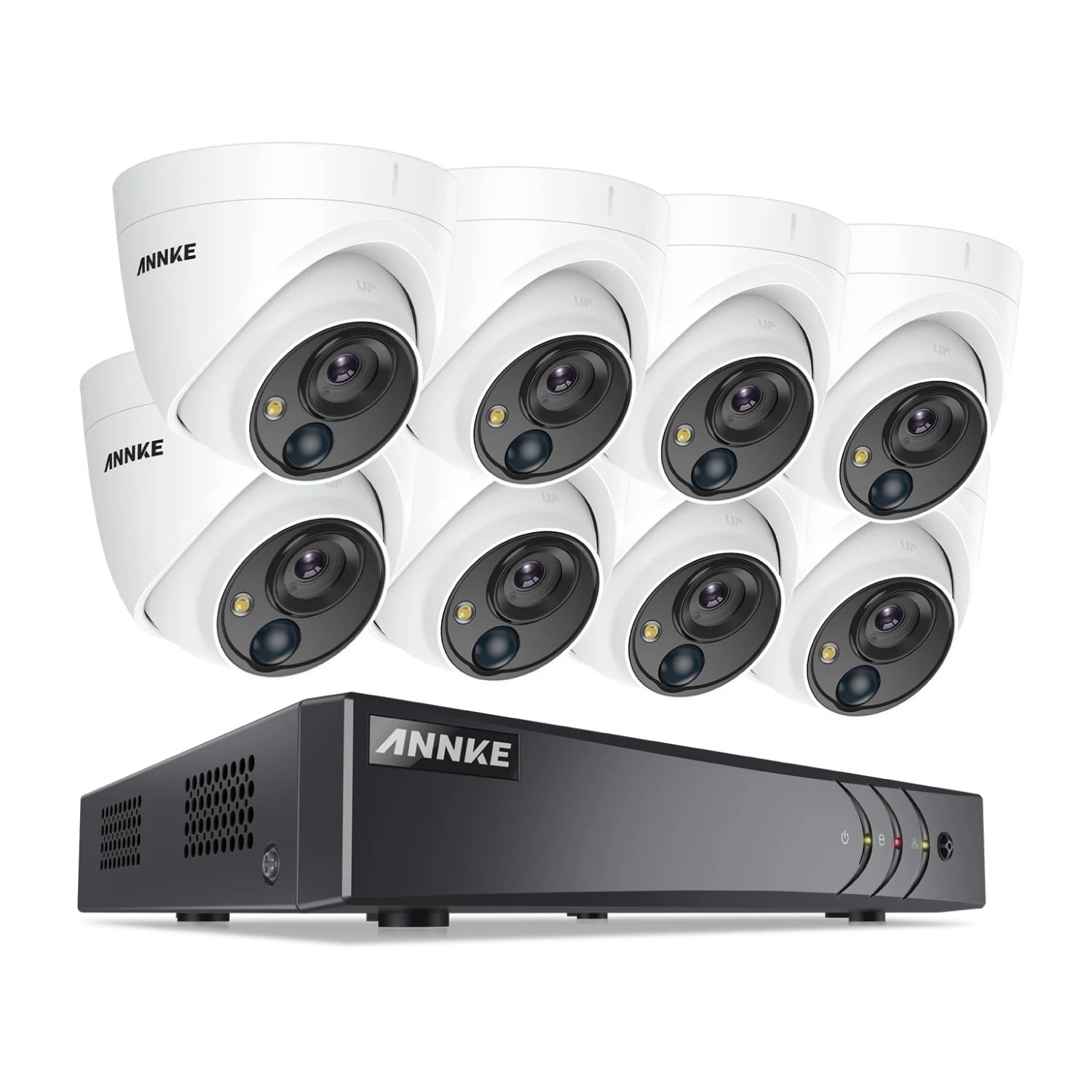

3K CMOS Camera(White Color) | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
Supplement Light type |
1 white Light & 2 EXIR |
|
Supplement Light Range |
IR: Up to 25 m, white Light: Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Plastic |
Color |
Black |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") |
|
Weight |
Approx. 155 g (0.34 lb.) |
|
